LED Ceiling Light DITA

The energy-efficient DITA LED ceiling light is suitable for shops, offices, schools, hotels, corridors and reception areas.

SKU: 2f0b581737e7 Category: Wall LED Lights

Features

Key features	aluminium body low-glare faceted reflector (DITA) opal diffuser (DITA C) optional DALI control optional emergency module (DITA C)
Efficacy	up to 134 lm/W at a colour temperature of 4,000 K and a colour rendering index (Ra) > 80
Maximum luminous output	from 1,275 lm to 3,325 lm
Lifetime	60,000 hours L80B10 while maintaining 80 % of the initial luminous flux
Warranty	5 years

Varianty

Model	Dimensions	Power	*Luminous flux 3,000 K**	*Luminous flux 4,000 K**	Beam angle	Protection rating	Weight
DITA 14	Ø 168 × 172 mm	14 W	1,725 lm	1,875 lm	50°	IP 20	1.0 kg
DITA 20		20 W	2,350 lm	2,475 lm
DITA 27		27 W	3,150 lm	3,325 lm
DITA C 12	Ø 200 × 130 mm	12 W	1,275 lm	1,325 lm	96°	IP 44	1.0 kg
DITA C 16		16 W	1,775 lm	1,850 lm
DITA C 23		23 W	2,450 lm	2,575 lm

* The luminous flux already includes the losses on the luminaire (we do not state the luminous flux of the LED chips themselves). Values apply at an ambient temperature of 25 °C.

Technical data

Luminaire construction

Luminaire body:	white aluminium (RAL 9016), DITA C also black (RAL 9005)
Optics:	faceted aluminium reflector (DITA)
Diffuser:	opal polycarbonate (DITA C)

Colour temperature

DITA:	2 700 – 4 000 K
DITA C:	3 000 K or 4 000 K

Colour rendering index

DITA:	Ra > 80 (Ra > 95 on request)
DITA C:	Ra > 80

Colour consistency

SDCM 3

Beam angle

DITA – 50°
DITA C – 96°

Input voltage

220–240 V / 50–60 Hz

Power factor

DITA:	0.95
DITA C:	> 0.9

Protection rating

DITA:	IP 20
DITA C:	IP 44

Impact resistance

DITA:	IK 02
DITA C:	IK 04

Protection class

Operating temperature

0 … +35 °C

Accessories and mounting

Mounting method

surface mounting on the ceiling
suspended from the ceiling (on request)

Luminaire options

Dimming:	on request (DALI, switch-controlled dimming)
Emergency module:	on request, 3 h (DITA C) self-test or DALI (DITA C 12, C 16)
RAL colour:	on request black RAL 9005 (DITA C)
Colour rendering Ra > 95:	on request (DITA) 2,700 K, 3,000 K or 4,000 K

Downloads

Catalogue sheets	Catalogue sheet – DITA luminaire
LDT data	LDT data for the DITA luminaire

Ceiling downlights with reflector or opal diffuser

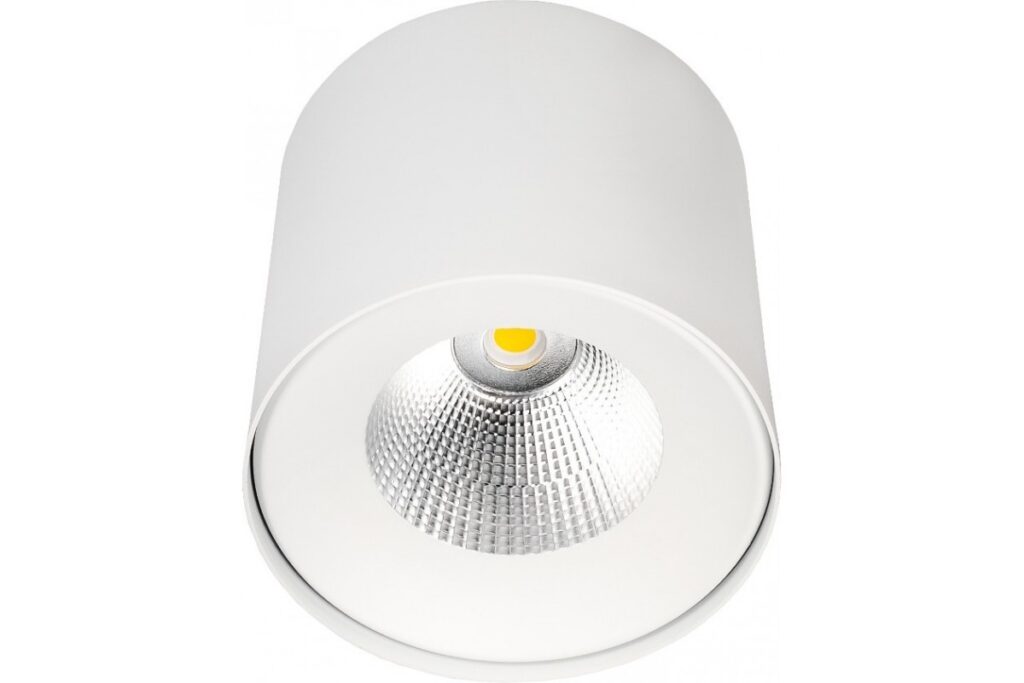

DITA LED luminaires have an aluminium body that ensures good heat dissipation and a long lifetime. They are available in two versions: DITA with a low-glare faceted aluminium reflector and a narrow 50° beam, and DITA C with an opal diffuser for even light without visible LED dots, a 96° beam and IP 44 protection.

The luminaires are surface-mounted on the ceiling; the suspended version can also be hung on a wire suspension. On request they are available with DALI dimming, DITA C also with a 3-hour emergency module and in black.

The lifetime of the luminaires is 60,000 hours. DITA luminaires come with a 5-year warranty.
