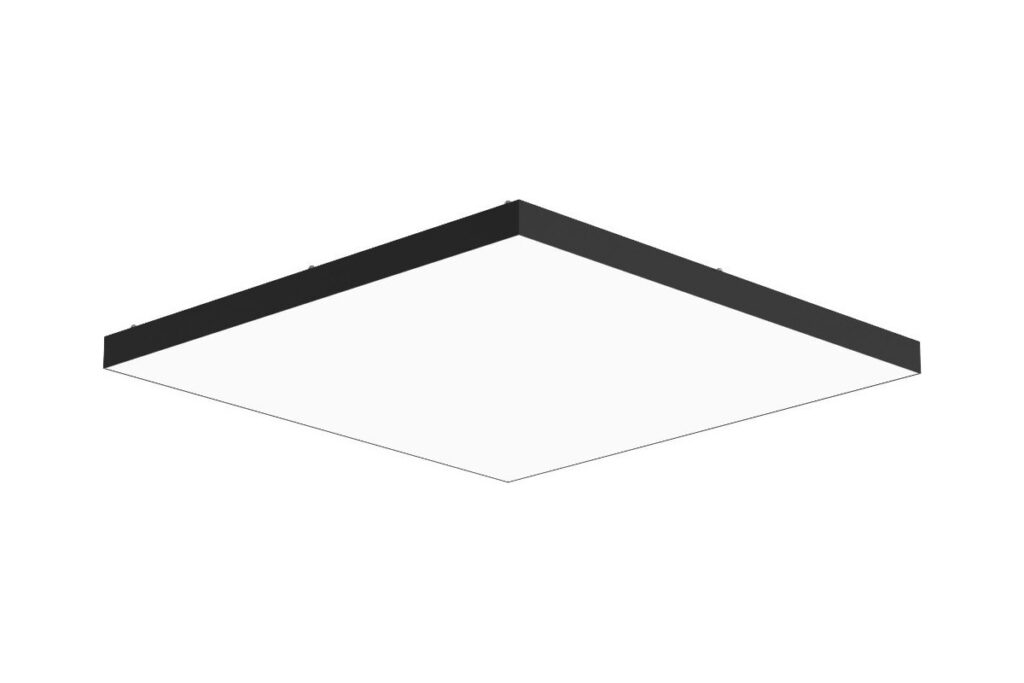

LED Panel PERLA

PERLA is a large-format LED panel with high colour rendering for shops, showrooms, offices, hotels and museums.

Features

Key features	large-format panel up to 3,000 × 1,200 mm high colour rendering Ra > 90 low glare UGR < 19 soft film diffuser, even light without light points black aluminium frame, suspended or surface-mounted
Efficacy	80 lm/W at a colour temperature of 4,000 K and a colour rendering index (Ra) > 90
Maximum luminous output	from 4,800 lm to 14,400 lm
Lifetime	50,000 hours L80B10 while maintaining 80% of the initial luminous flux
Warranty	5 years

Varianty

Model	Dimensions	Power	Luminous flux (NB)*	Weight
PERLA 60	1,200 × 1,200 × 110 mm	60 W	4,800 lm	11.0 kg
PERLA 120	2,400 × 1,200 × 110 mm	120 W	9,600 lm	21.0 kg
PERLA 180	3,000 × 1,200 × 110 mm	180 W	14,400 lm	27.0 kg

* The luminous flux already includes the losses in the luminaire (we do not state the luminous flux of the LED chips alone). [4,000 K = neutral white (NW)]

Technical data

Luminaire design

Luminaire frame:	black aluminium (RAL 9005)
Diffuser:	soft white film

Colour temperature

4,000 K

with DALI switchable 3,000 / 4,000 K

Colour rendering index

> 90 CRI

Beam angle

120°

Glare

UGR < 19

Operating temperature

-10 °C ~ 40 °C

Input voltage

AC: 220 – 240 V/50 – 60 Hz

Power factor

0.9

Protection rating

IP 40

Impact resistance

IK 02

Protection class

Accessories and mounting

Mounting method

suspended (suspension kit included)
surface-mounted on the ceiling (mounting kit on request)

Luminaire options

Dimming:

on request (DALI)

PERLA 60 and PERLA 120

Colour temperature with DALI:

switchable 3,000 / 4,000 K

Height with DALI:

120 mm

Downloads

Catalogue sheets	Catalogue sheet – PERLA luminaire
LDT data	LDT data for the PERLA luminaire

The PERLA LED panel is a large-format luminaire that creates the impression of a luminous ceiling. It is designed for shops, showrooms, offices, hotels, museums and exhibition spaces. The soft film diffuser spreads the light evenly over the whole surface without visible light points and with low glare of UGR < 19.

The panel is available in three sizes – 1,200 × 1,200 mm, 2,400 × 1,200 mm and 3,000 × 1,200 mm. A high colour rendering index of Ra > 90 shows the true colours of goods and interiors. The aluminium frame is black.

It is suspended (suspension kit included) or surface-mounted on the ceiling with a mounting kit. DALI dimming with switchable colour temperature 3,000 / 4,000 K is available on request.

PERLA guarantees a lifetime of 50,000 hours and significant energy savings. It comes with an extended 5-year warranty.
