LED Sensor Light SENZO

Contactless LED Lights with built-in light source and microwave sensor.

Category:

Sensor LED Lights SENZO with microwave sensor save more than 90 % of energy costs. The operation time is more than 50,000 hours. The LED chips are involved directly into the light body.

Sensor LED Lights installation is very simple and the light source exchange is not required during the operation time. Lights guarantee the light chromaticity in any point of Kelvin scale, do not produce any UV and do not attract insect, are environmentally friendly and voltage fluctuation resistant.

There is a possibility to adjust the automatic turn-off time, sensor range and automatic turn-on depending on environment light intensity.

Inside of Sensor LED Light SENZO

Twist the yellow screw to set the light’s parameters.The screw is visible when the shell is removed.

  • LUX – sensitivity to daylight
  • TIME – turn-on period
  • DISTANCE – sensor range distance



Lights are maintenance free, switch on immediately, do not flicker and no radio frequency disturbance occurs.

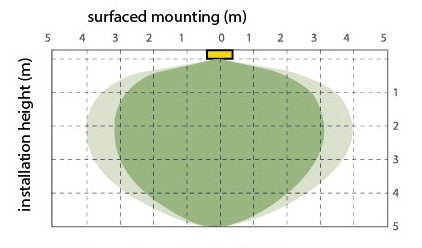

SENSOR OPERATION SCHEME

Surfaced mounting of a sensor LED light Surfaced mounting of a sensor LED light - diagram Legend
Surfaced mounted Sensor LED Light

SENSOR LED LIGHT SENZO PARAMETERS

MODEL SENZO
Input Voltage AC: 230 V, 50 Hz
Size Ø 260 mm, height 95 mm
Weight 0.8 kg
Operation Voltage 9 W 12 W 15 W
Light Flux 800 lm 960 lm 1 200 lm
LED Chip Type Epistar SMD2835
Colour Temperature 2,700 K ~6,500 K
Sensor Range 1 m ~ 8 m
Automatic Turn-off Time 5 s ~ 15 min
Sensitivty 5 Lx – 200 Lx
Enclosure Rating IP54
Operation Time 50,000 hours
Operation Temperature -20°C ~ 40°C
Warranty 3 years

* Light flux parameter shows the REAL light flux regarding the light intensity loss (not the LED light flux intensity, which does not reflect the real light intensity). Light flux intensity depends on the temperature employed (K), higher the temperature, higher the light flux.

  • 3,000 K = warm white (WW)
  • 4,000 K = neutral white (NW)
  • 5,000 K = day light white (DW)
  • 6,000 K = cool white (CW)
