LED street light SARA

The LED street light SARA is a modular luminaire for pole mounting, suitable for lighting roads, streets, footpaths, car parks and company premises.

SKU: 56c2f80675ce Category: LED Public Lighting

Features

Key features	modular luminaire – 1 to 12 modules of 12 LEDs five optics for roads, footpaths and car parks optics without a cover glass with light transmission of more than 93 % tool-free opening of the luminaire option to adjust the tilt angle (± 20° in 5° steps) optional DALI dimming, D4i interface and Zhaga / NEMA connector
Efficacy	up to 169 lm/W at a colour temperature of 4,000 K and a colour rendering index (Ra) > 70
Maximum luminous output	from 1,975 lm to 49,350 lm
Lifetime	100,000 hours L90B10 while retaining 90 % of the initial luminous flux
Warranty	5 years

Varianty

Model	Dimensions	Number of modules	Power	Luminous flux (NW)*	Weight
SARA 12 LED	270 × 275 × 180 mm	1	12 – 42 W	1,975 – 6,300 lm	4.1 kg
SARA 24 LED	330 × 275 × 180 mm	2	24 – 81 W	3,975 – 12,375 lm	4.2 kg
SARA 36 LED	400 × 275 × 180 mm	3	36 – 119 W	5,950 – 18,650 lm	5.0 kg
SARA 48 LED	500 × 275 × 180 mm	4	48 – 156 W	7,950 – 24,550 lm	7.0 kg
SARA 60 LED	500 × 275 × 180 mm	5	60 – 193 W	9,925 – 30,275 lm	7.0 kg
SARA 72 LED	500 × 275 × 180 mm	6	72 – 231 W	11,925 – 36,325 lm	7.0 kg
SARA 144 LED		12	144 – 303 W	23,825 – 49,350 lm	11.4 kg

* The luminous flux is stated including the losses on the luminaire (we do not state the luminous flux of the LED chips themselves). The luminous flux intensity depends on the selected colour temperature (in kelvins) – the higher the temperature, the greater the luminous flux. [3,000 K = warm white (WW), 4,000 K = neutral white (NW), 5,000 K = daylight white (DW), 6,000 K = cool white (CW)]

The power is set to the project within the stated range. Exact values for a specific power and optic can be found in the LDT data on the Downloads tab.

LDT data for SARA 144 LED on request.

Technical data

Luminaire design

Luminaire body:	aluminium (RAL 9006)
Optics:	PMMA
Gasket:	silicone

Colour temperature

4,000 K (3,000 K and 5,700 K on request)

Colour rendering index

≥ 70 CRI

Beam angle

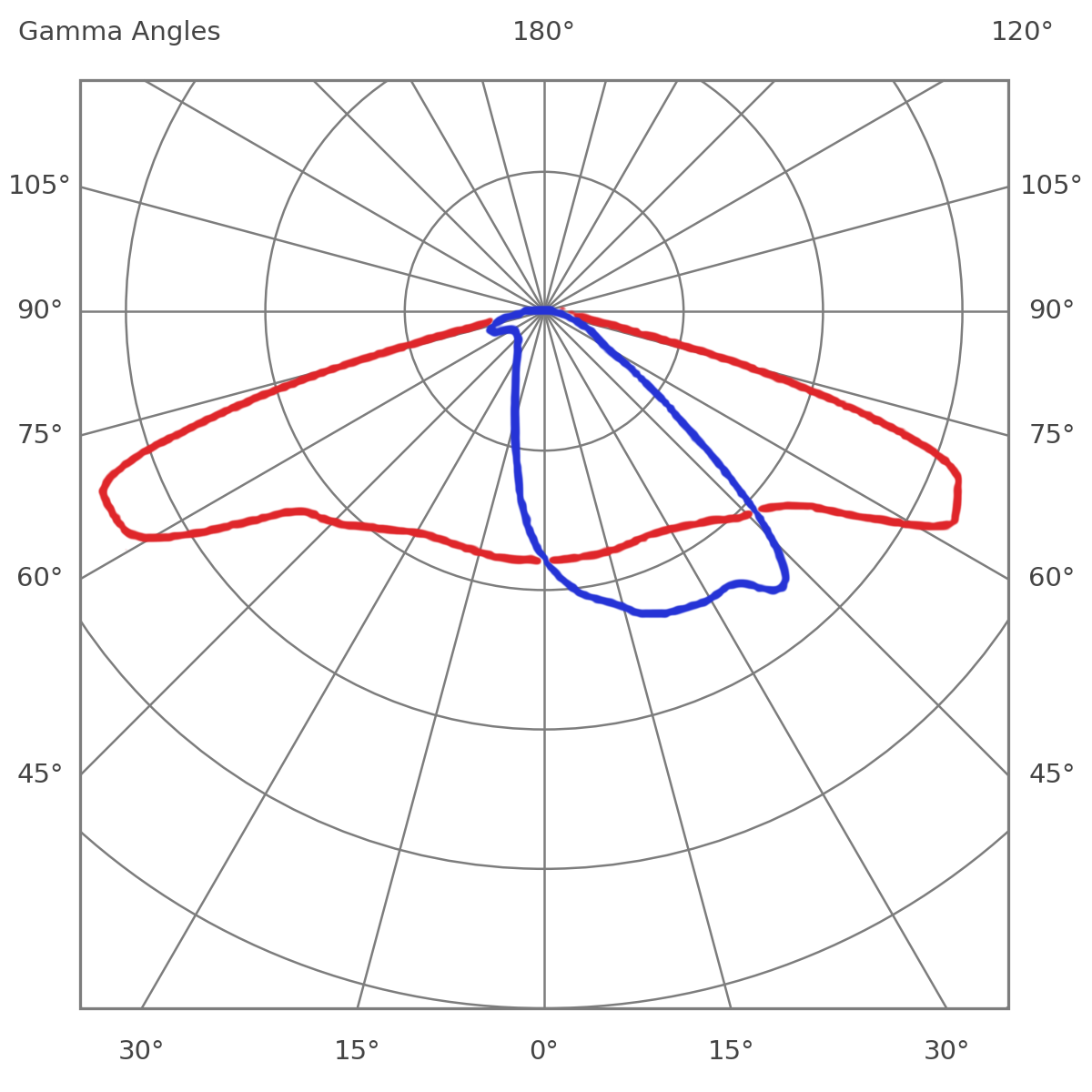

Curve A*

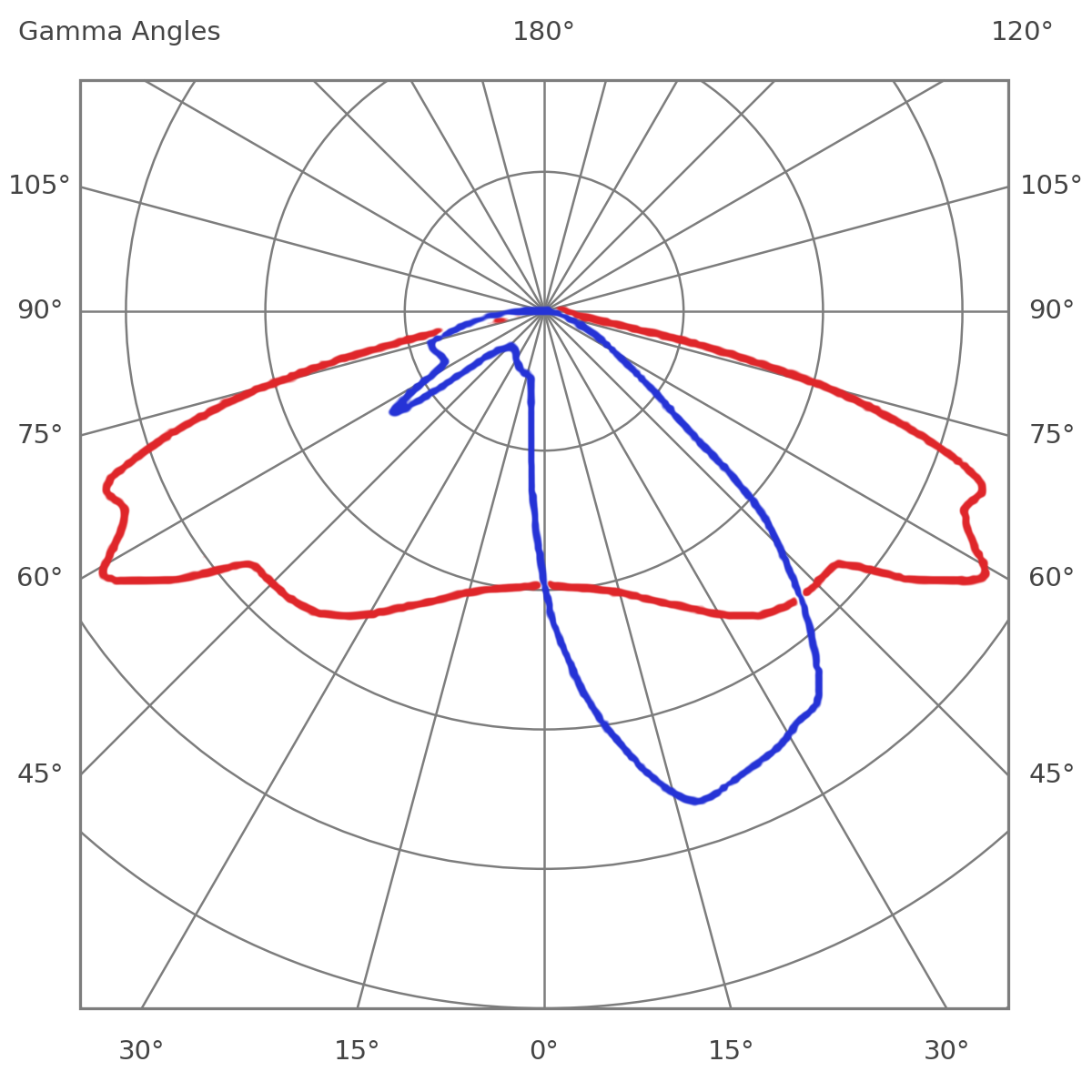

Curve C*

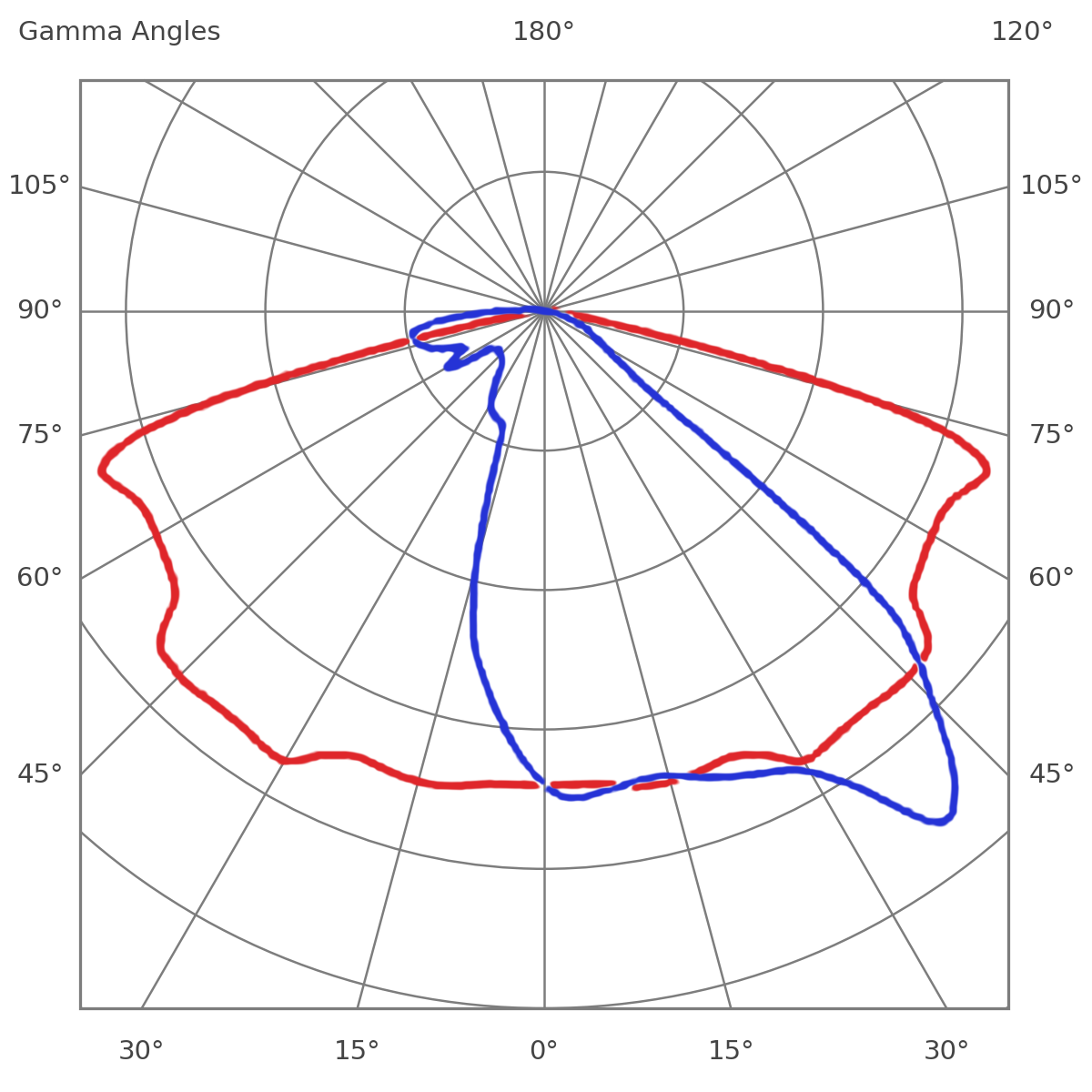

Curve G*

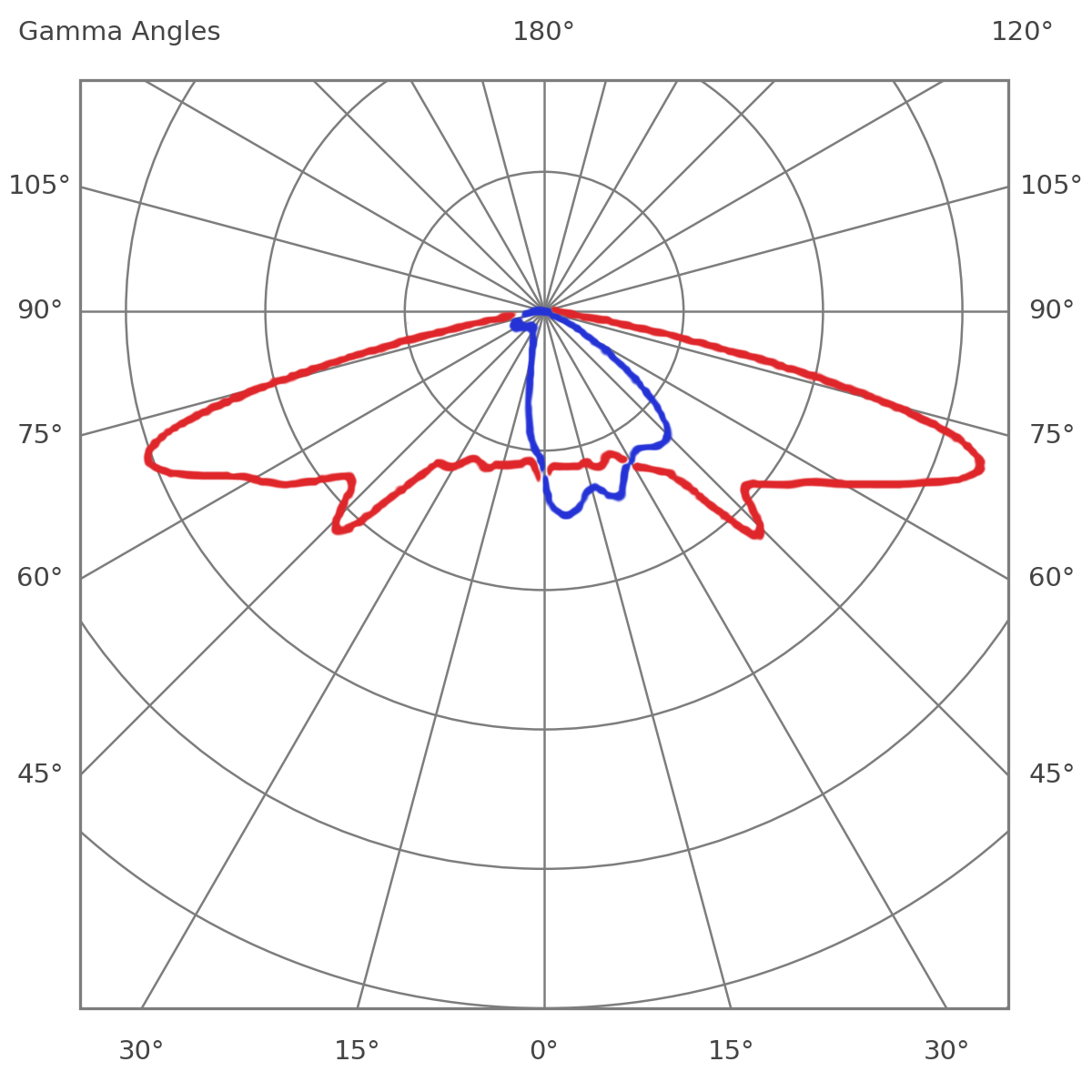

Curve N*
Curve L*

Operating temperature

-40 °C ~ 50 °C

Input voltage

AC: 220 V – 240 V/50 – 60 Hz

Power factor

≥ 0.95

Protection rating

IP 66

Impact resistance

IK 10

Surge protection

10 kV

Protection class

I (II on request)

* A, C and G – roads
N – footpaths and cycle paths
L – car parks and open areas

Accessories and mounting

Accessories

0.5 m connecting cable (other length on request)
pole adapter Ø 76 mm (optional)

Mounting method

post-top
side entry on a bracket arm
holder for Ø 54 – 62 mm
adjustable tilt ± 20° (in 5° steps)

Luminaire options

Dimming:	on request (DALI, 1 – 10 V) or autonomous (Dynadimmer)
D4i interface:	on request 1 – 2 Zhaga connectors
NEMA connector:	on request
Surge protection:	on request (20 kV)
Input voltage:	on request AC: 110 V – 277 V
RAL colour:	on request

Downloads

Catalogue sheets	Catalogue sheet – SARA luminaire
LDT data	LDT data for the SARA luminaire

Modular LED luminaire for lighting roads and public spaces

The LED street light SARA is a modular luminaire for lighting roads, streets, footpaths, car parks and company premises. It consists of 1 to 12 modules of 12 LEDs, so the same type of luminaire can light a footpath as well as a wide road.

It is made with power from 12 to 303 W and a luminous flux of up to 49,350 lm; the power is set precisely to the project. There is a choice of five optics for roads, footpaths and cycle paths as well as car parks. The PMMA optics without a cover glass transmit more than 93 % of the light, and the luminaire reaches an efficacy of up to 169 lm/W.

The aluminium body with IP 66 protection and IK 10 impact resistance handles year-round outdoor operation at temperatures from −40 °C. The luminaire is mounted post-top or side entry on a bracket arm with a tilt of ± 20° and opens without tools. On request we supply DALI dimming, a D4i interface with Zhaga connectors or a NEMA connector.
