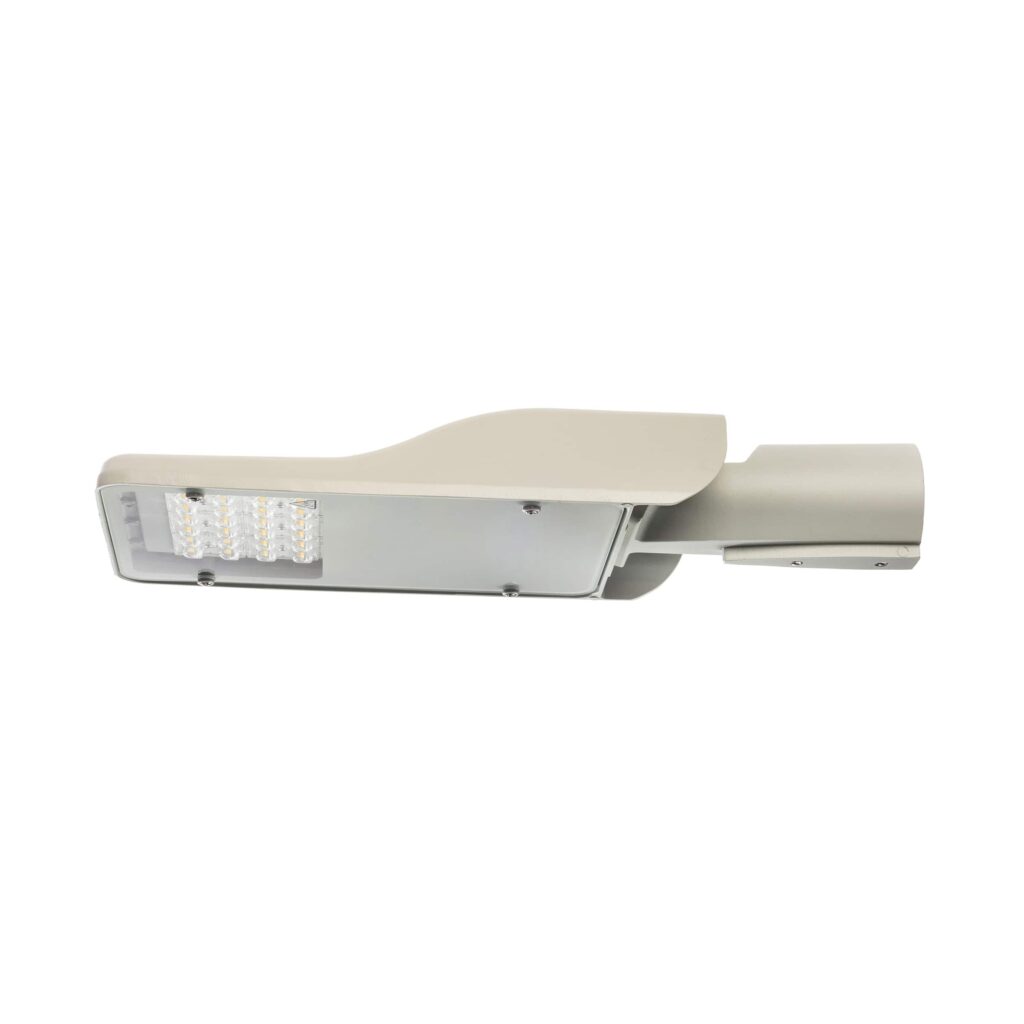

The LED street light SILVA is a luminaire with a tempered glass cover, suitable for lighting roads, streets, residential zones, car parks and company premises.
Key features |
|
Efficacy |
up to 135 lm/Wat a colour temperature of 4,000 K and a colour rendering index (Ra) > 70 |
Maximum luminous output |
from 3,600 lm to 20,000 lm |
Lifetime |
100,000 hoursL90B10 while retaining 90 % of the initial luminous flux |
Warranty |
5 years |
| Model | Dimensions | Power | Luminous flux (WW)* | Luminous flux (NW)* | Weight |
| SILVA S | 530 × 240 × 76 mm | 27 W | 3,400 lm | 3,600 lm | 4.9 kg |
| 40 W | 5,200 lm | 5,400 lm | |||
| 54 W | 6,900 lm | 7,200 lm | |||
| 81 W | 10,300 lm | 10,700 lm | |||
| SILVA M | 645 × 264 × 76 mm | 120 W | 15,400 lm | 16,000 lm | 6.5 kg |
| 153 W | 19,650 lm | 20,000 lm |
* The luminous flux is stated including the losses on the luminaire (we do not state the luminous flux of the LED chips themselves). The luminous flux intensity depends on the selected colour temperature (in kelvins) – the higher the temperature, the greater the luminous flux. [3,000 K = warm white (WW), 4,000 K = neutral white (NW), 5,000 K = daylight white (DW), 6,000 K = cool white (CW)]
Values apply to the standard optic M. Other power levels and optics on request – exact values can be found in the LDT data on the Downloads tab.
Luminaire design |
|
||||||
Colour temperature |
3,000 K or 4,000 K | ||||||
Colour rendering index |
≥ 70 CRI | ||||||
Beam angle |
|
||||||
Operating temperature |
-40 °C ~ 35 °C | ||||||
Input voltage |
AC: 220 V – 240 V/50 – 60 Hz | ||||||
Power factor |
0.99 | ||||||
Protection rating |
IP 66 | ||||||
Impact resistance |
IK 09 | ||||||
Surge protection |
6 kV / 10 kV | ||||||
Protection class |
I |
* M – wide asymmetric curve for roads; other optics on request
Accessories |
|
||||||||
Mounting method |
|
||||||||
Luminaire options |
|
Catalogue sheets |
Catalogue sheet – SILVA luminaire |
LDT data |
 LDT data for the SILVA luminaire |
The LED street light SILVA is a luminaire with a die-cast aluminium body and a tempered glass cover, designed for lighting roads, streets, residential zones, car parks and company premises.
It is made in two sizes – SILVA S with power from 27 to 81 W and SILVA M with 120 and 153 W – with a luminous flux of up to 20,000 lm and an efficacy of up to 135 lm/W. A wide asymmetric optic for roads is standard; other optics are available on request.
The protection rating IP 66 and impact resistance IK 09 make it suitable for year-round outdoor operation at temperatures from −40 °C. It is mounted post-top or side entry on a bracket arm with a diameter of 40 – 60 mm, with an adapter also on 76 mm. On request we supply DALI dimming, a D4i interface with a Zhaga connector, autonomous 5-step dimming, constant light output and sensors.
