LED High Bay Light IVA

LED High Bay Light IVA saves up to 80 % of energy costs. Its operation time is more than 50,000 hours.

High quality components make LED High Bay Light IVA a perfect solution for demanding industrial environment.

There are high bright LEDs by Nichia, a Japanese producer, involved in the light. The distance between the LEDs is approx. 1 cm, which solves up the problem of mutual heating. The LED High Bay Light IVA is highly effective – up to 160 lm/W (with colour temperature 5,000 K).

The IP65 enclosure rating makes the LED High Bay Light IVA just perfect for outside installation.

The proper heat transfer and passive cooling are ensured by finned cooler and extra passive cooling system for the driver.

There are different mounting methods available – surfaced, suspended (by a lifting eye or pole), or wall-mounting. Hence the LED High Bay Light IVA can be installed anywhere, it is even perfect for high ceilings.

Installation options

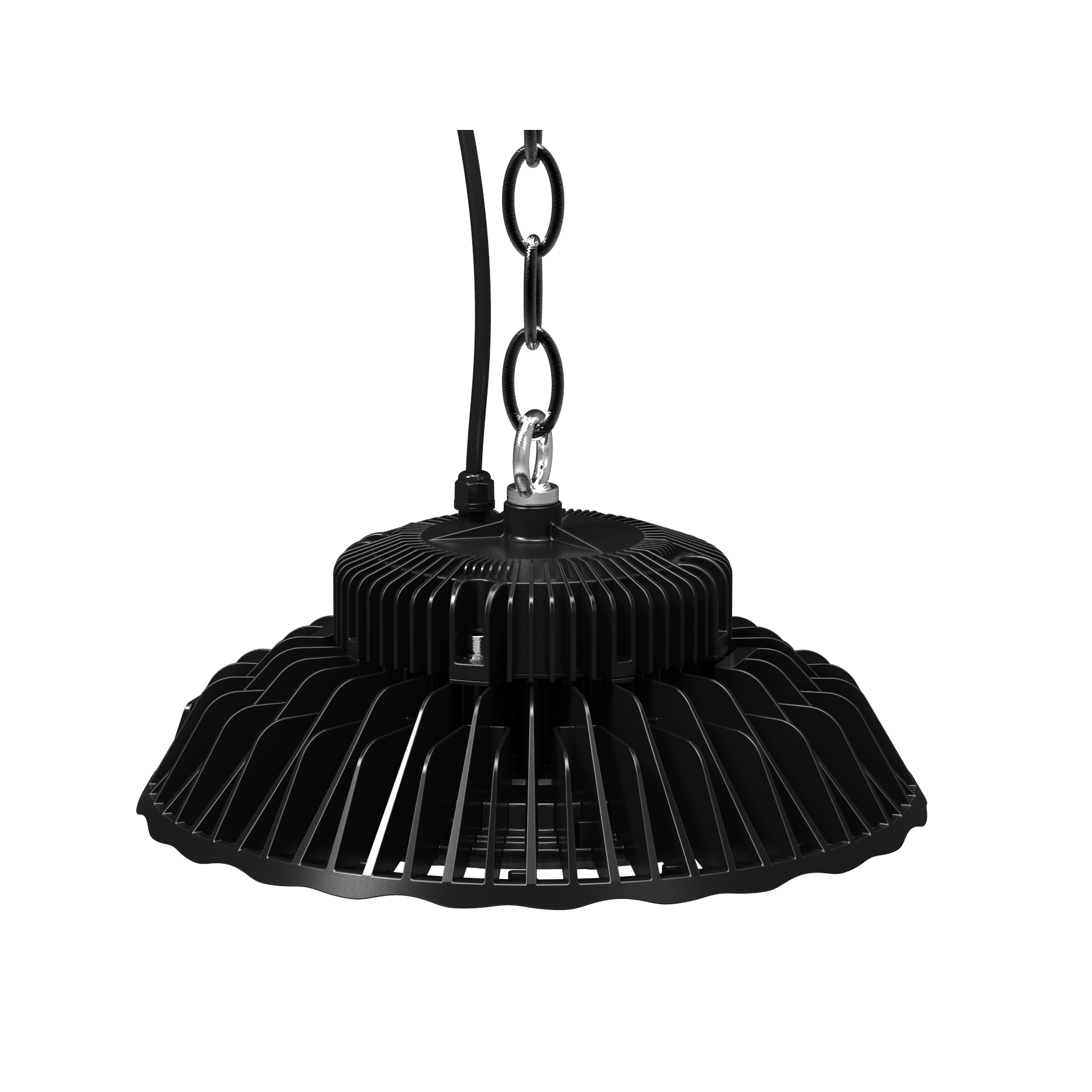

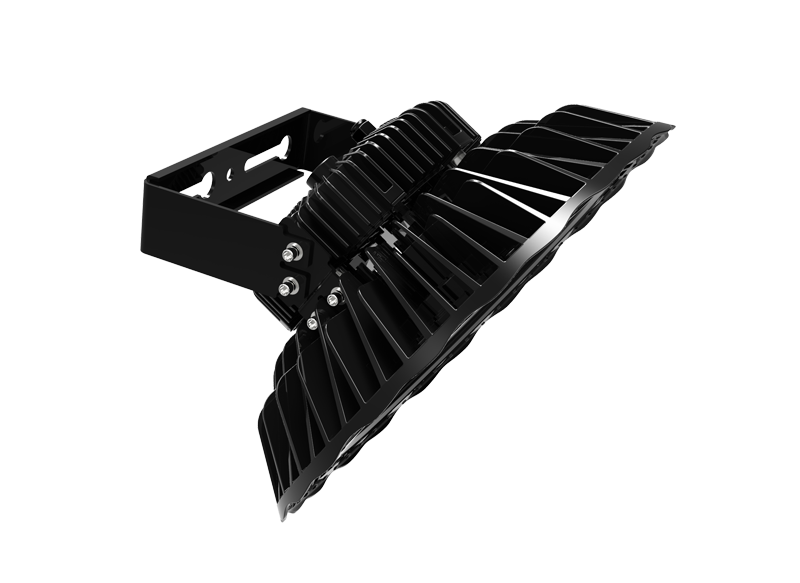

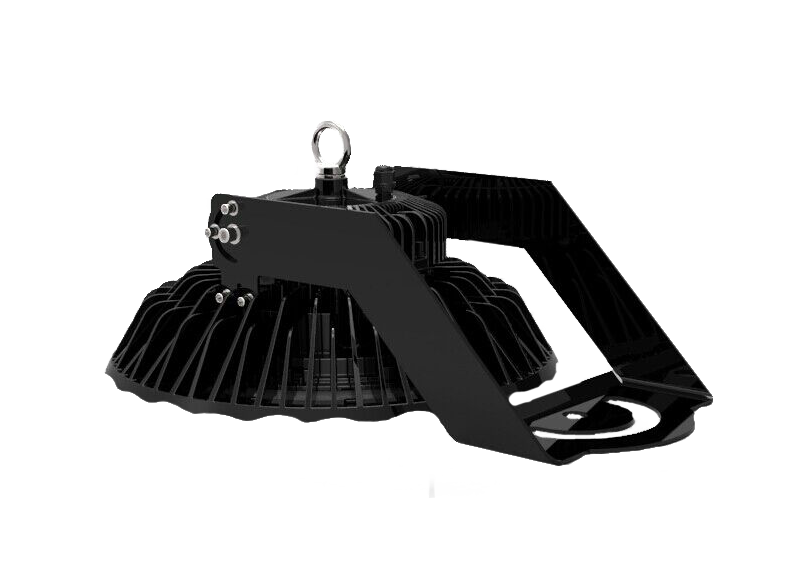

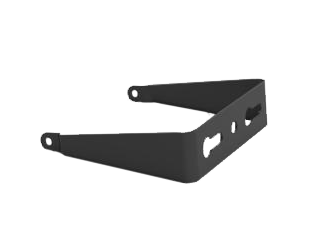

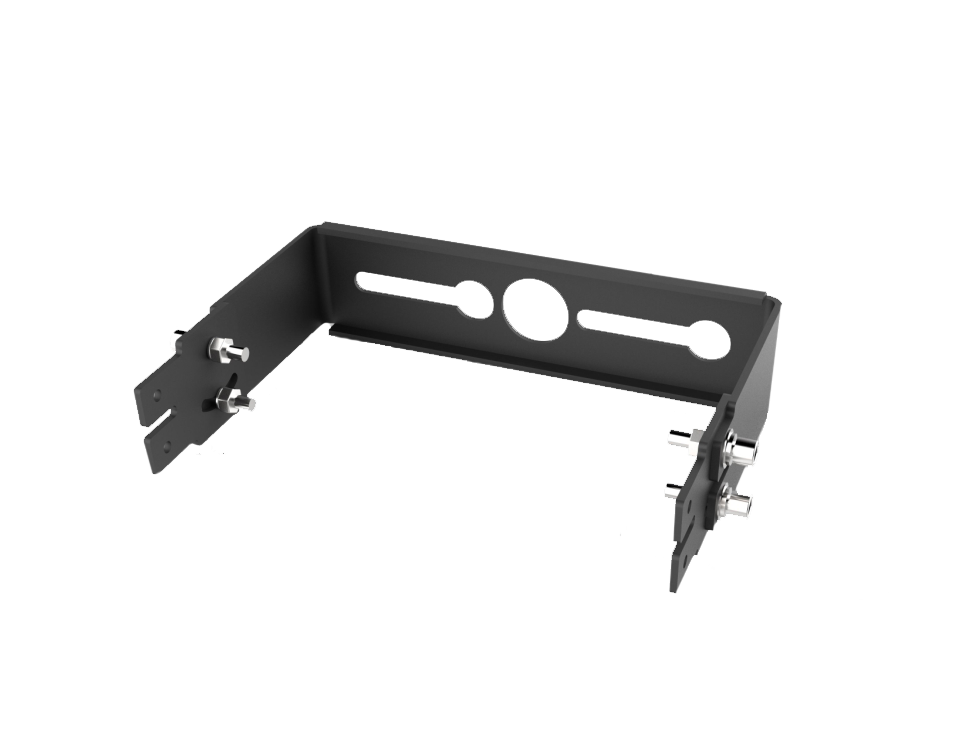

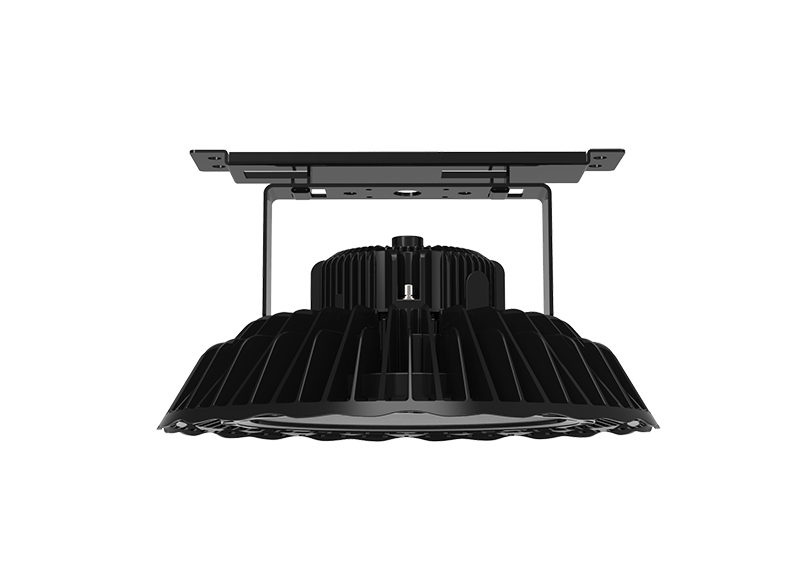

hook mounted	non-adjustable bracket	adjustable bracket ± 45°	adjustable bracket ± 180°

An emergency module can be provided on request.

Other advantages: no UV radiation, does not attract the insect, environmentally friendly operation, maintenance free, switches on immediately, no flickering, no radio frequency disturbance.

LED High Bay Light IVA is a high quality and reliable lighting solution suitable for the most demanding environments (ongoing quality checks during the production process).

We provide 5 years warranty.

LED High Bay Light IVA parameters

MODEL	IVA 100	IVA 120	IVA 150	IVA 200	IVA 240	IVA 300
Input Voltage	AC: 100 V – 277 V/50 – 60 Hz
Input	100 W	120 W	150 W	200 W	240 W	300 W
Light Flux – 120° beaming angle (clear shell) – (DW)*	13,717 lm	16,289 lm	21,081 lm	27,332 lm	30,442 lm	41,264 lm
Light Flux – 90° beaming angle (clear shell) – (DW)*	13,540 lm	16,366 lm	20,986 lm	26,535 lm	29,229 lm	44,475 lm
Light Flux – 50°/60° beaming angle (clear shell) – (DW)*	13,605 lm	16,533 lm	20,791 lm	23,567 lm	26,731 lm	44,942 lm
Colour Rendering Index	> 73 CRI (Ra)/83 CRI (Ra) on request
Colour Temperature	3,000 K, 4,000 K, 5,000 K
Power Factor	≥0.95
Enclosure Rating	IP65 /IK 08 /IK 10
Operation Time	> 50,000 hours/L80/B10
Operation Temperature	-40°C ~ 60 °C
LED Chip Type	Nichia SMD
Driver	Mean Well
Beaming Angle	50°, 90° or 120°				60°, 90° or 120°
Size	383 x 193 mm			383 x 203.5 mm		383 x 257 mm
Weight	6.7 kg			7.3 kg		9.0 kg
Warranty	5 years

LED High Bay Light IVA MINI parameters

MODEL	IVA 50	IVA 70	IVA 90
Input Voltage	AC: 100 V – 277 V/50 – 60 Hz
Input	50 W	70 W	90 W
Light Flux – 120° beaming angle (clear shell) – (DW)*	6,447 lm	9,549 lm	12,016 lm
Light Flux – 90° beaming angle (clear shell) – (DW)*	6,617 lm	9,900 lm	12,282 lm
Colour Rendering Index	> 73 CRI (Ra)/83 CRI (Ra) on request
Colour Temperature	3,000 K, 4,000 K, 5,000 K
Power Factor	≥0.95
Enclosure Rating	IP 65 /IK 08 /IK 10
Operation Time	> 50,000 hours/L80/B10
Operation Temperatute	-40°C ~ 60 °C
LED	Nichia SMD
Driver	Mean Well
Beaming Angle	90° or 120°
Size	Ø 264× 121,5 mm	Ø 264 × 172,5 mm
Weight	2.27 kg	3.02 kg
Warranty	5 years

*  Light flux parameter shows the REAL light flux regarding the light intensity loss (not the LED chip light flux intensity, which does not reflect the real light intensity). Light flux intensity depends on the temperature employed (K), higher the temperature, higher the light flux. [3,000 K = warm white (WW), 4,000 K = neutral white (NW), 5,000 K = day light white (DW), 6,000 K = cold white (CB)]
