Nicole Photopic luminaires are among the products of the Dutch company Innolumis Public Lighting. The luminaires themselves, the LEDs and the associated electronics are designed so that their minimum service life is 100,000 hours, i.e. approximately 25 years.
Luminaire maintenance
The anti-static powder coating prevents dirt from settling on the luminaire as far as possible. Maintenance is limited to cleaning the luminaire, because the light sources never need to be replaced.
Components used

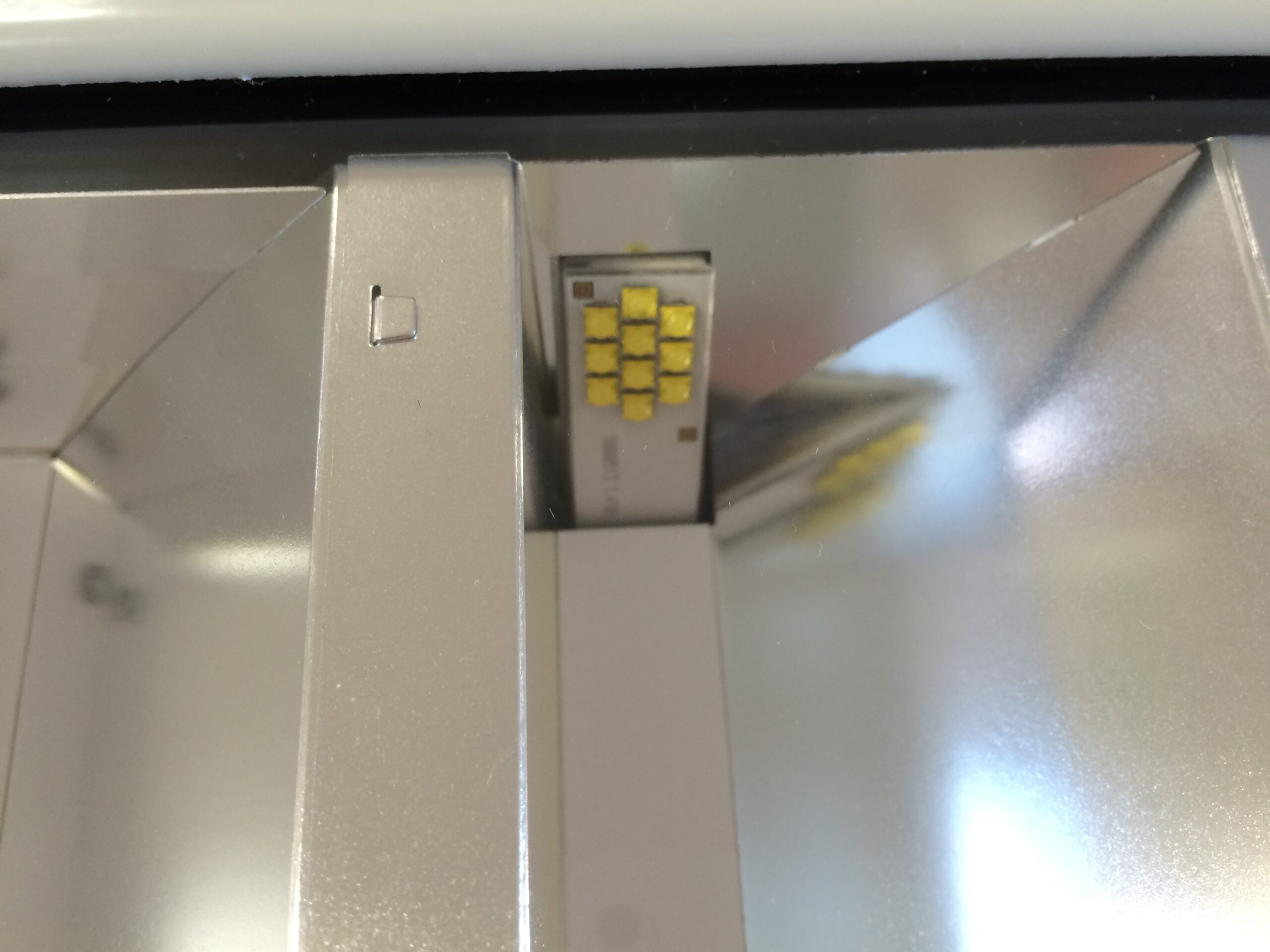

Nicole street luminaires are fitted with a driver from Mean Well, which guarantees a constant power supply to the LEDs. On request, the luminaires can be fitted with a dimmable driver with a pre-programmed dimming schedule. The LEDs used are supplied by CREE.
Product ranges

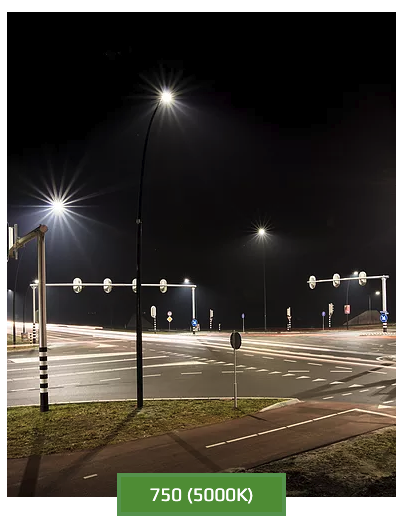

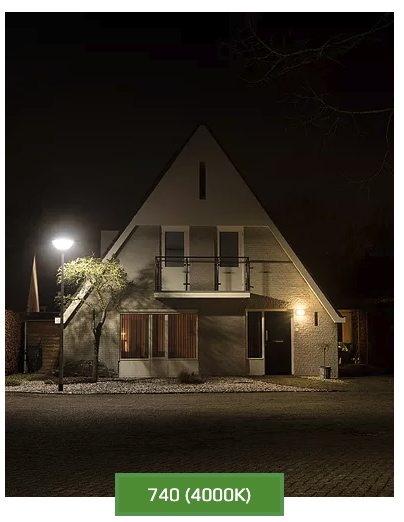

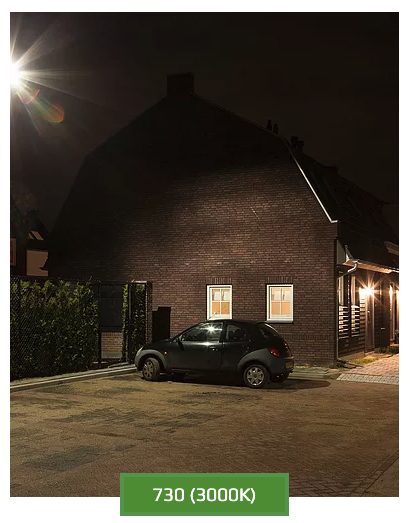

The light sources in Nicole Photopic luminaires are white (phosphor) LEDs with a colour temperature of 3,000 K for Nicole Warm White, 4,000 K for Nicole Neutral White and 5,000 K for Nicole Outdoor White.
All colour spectra of the luminaires are also available in the Mini Nicole and Maxi Nicole versions. For more information on dimensions and specifications, do not hesitate to contact us.
Specifications – Nicole Photopic luminaires
| Model | Warm White (730) |
Neutral White (740) |
Outdoor White (750) |
| Dimensions of luminaire | 740 x 204 x 122 mm | ||
| Weight | 7 kg | ||
| Bracket/post diameter | 48 – 60 mm / 60 – 76 mm | ||
| Input voltage | AC: 100 V – 240 V/50 – 60 Hz | ||
| S/P ratio | 1.3 | 1.5 | 1.7 |
| Luminous flux* | 10 W: 1,080 lm 16 W: 2,280 lm 24 W: 3,065 lm 36 W: 3,900 lm 56 W: 5,340 lm 75 W: 6,400 lm |
10 W: 1,230 lm 16 W: 2,550 lm 24 W: 3,430 lm 36 W: 4,380 lm 56 W: 6,100 lm 75 W: 7,420 lm |
10 W: 1,330 lm 16 W: 2,795 lm 24 W: 3,760 lm 36 W: 4,800 lm 56 W: 6,595 lm 75 W: 7,850 lm |
| Power input / driving current | 10 W: 10.3 W/87.5 mA 16 W: 21.2 W/175 mA 24 W: 29.8 W/250 mA 36 W: 40.0 W/335 mA 56 W: 61.2 W/500 mA 75 W: 79.5 W/625 mA |
||
| Efficacy | 10 W: 105 lm/W 16 W: 108 lm/W 24 W: 103 lm/W 36 W: 98 lm/W 56 W: 87 lm/W 75 W: 81 lm/W |
10 W: 119 lm/W 16 W: 120 lm/W 24 W: 115 lm/W 36 W: 110 lm/W 56 W: 100 lm/W 75 W: 93 lm/W |
10 W: 129 lm/W 16 W: 132 lm/W 24 W: 126 lm/W 36 W: 120 lm/W 56 W: 108 lm/W 75 W: 99 lm/W |
| Colour temperature | 3,000 K | 4,000 K | 5,000 K |
| Driver | Mean Well (CLQ) | ||
| Dimming | yes (except 10 W) | ||
| LED chips | CREE | ||
| Colour rendering index | > 70 CRI (Ra) | ||
| Power factor | ≥ 0.95 | ||
| Lifetime | 100,000 hours (25 years) | ||
| Operating temperature | -40 °C ~ 50 °C | ||
| Protection rating | IP 67 | ||
| Impact resistance | IK 10 | ||
| Certification | CE/ENEC/KEMA | ||
| Warranty | 5 years (extended 10 years) | ||
* The luminous flux stated already includes the losses in the luminaire (we do not state the luminous flux of the LED chips alone). The luminous flux depends on the chosen colour temperature (in kelvins) – the higher the temperature, the greater the luminous flux. [3,000 K = warm white (WW), 4,000 K = neutral white (NW), 5,000 K = daylight white (DW), 6,000 K = cool white (CW)]
