LED Panel PRIUS

The PRIUS LED panel is an energy-saving and elegant lighting solution for offices and commercial spaces.

SKU: cf4d52e27a2e Category: LED Panels

Features

Key features	luminaire suitable for interiors slim panel only 30 mm thick – sizes 60 × 60 and 120 × 30 cm PRIUS with an opal diffuser, PRIUS GP with a micro-prismatic diffuser (UGR ≤ 19) colour temperature 3,000 K or 4,000 K various mounting options available
Efficacy	up to 137 lm/W at a colour temperature of 4,000 K and a colour rendering index (Ra) > 80
Maximum luminous output	from 3,675 lm to 4,100 lm
Lifetime	50,000 hours L80B10 maintaining 80 % of the initial luminous flux
Warranty	5 years

Varianty

Model	Dimensions	Diffuser	Power	Luminous flux (TB)*	Luminous flux (NB)*	Weight
PRIUS 60 × 60	595 × 595 × 30 mm	opal UGR ≤ 22	30 W	3,675 lm	3,925 lm	1.7 kg
PRIUS 120 × 30	1,195 × 295 × 30 mm	opal UGR ≤ 22	30 W	3,675 lm	3,925 lm	2.0 kg
PRIUS GP 60 × 60	595 × 595 × 30 mm	micro-prismatic UGR ≤ 19	30 W	3,850 lm	4,100 lm	1.7 kg
PRIUS GP 120 × 30	1,195 × 295 × 30 mm	micro-prismatic UGR ≤ 19	30 W	3,850 lm	4,100 lm	2.0 kg

* The luminous flux already includes losses on the luminaire (we do not state the luminous flux of the LED chips themselves). The luminous flux depends on the selected colour temperature (in kelvins) – the higher the temperature, the higher the luminous flux. [3,000 K = warm white (TB), 4,000 K = neutral white (NB)]

Technical data

Luminaire design

Luminaire body:	white aluminium (RAL 9016)
Diffuser:	opal (PRIUS), micro-prismatic (PRIUS GP)

Colour temperature

3,000 K or 4,000 K

Colour rendering Index

> 80 CRI

Beam angle

115° (PRIUS)
90° (PRIUS GP)

Glare rating

UGR ≤ 22 (PRIUS)
UGR ≤ 19 (PRIUS GP)

Operating temperature

0 °C ~ 35 °C

Power factor

> 0.90

Input voltage

AC: 220 – 240 V/50 – 60 Hz

Protection rating

IP 40

Impact resistance

IK 02

Protection class

Accessories and mounting

Accessories

recessed mounting kit (on request)
suspension kit (on request)
frame for recessed mounting (on request) white steel
frame for surface mounting (on request) white aluminium
frame for surface mounting (on request) white steel

Mounting method

recessed in the ceiling
suspended (on request)
surface-mounted (on request)

Luminaire options

Dimming:	on request (DALI)
Emergency lighting module:	on request (3 h)

Downloads

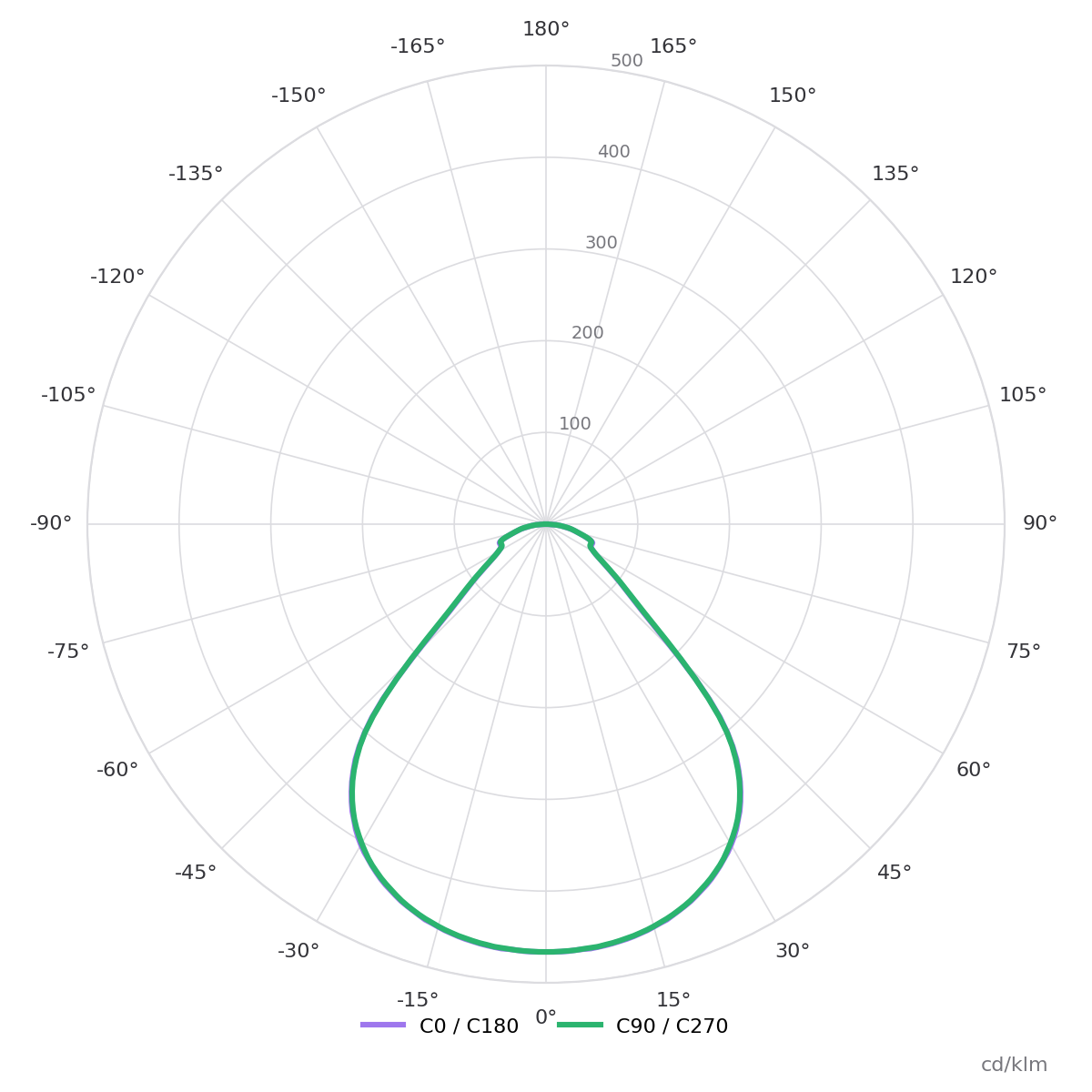

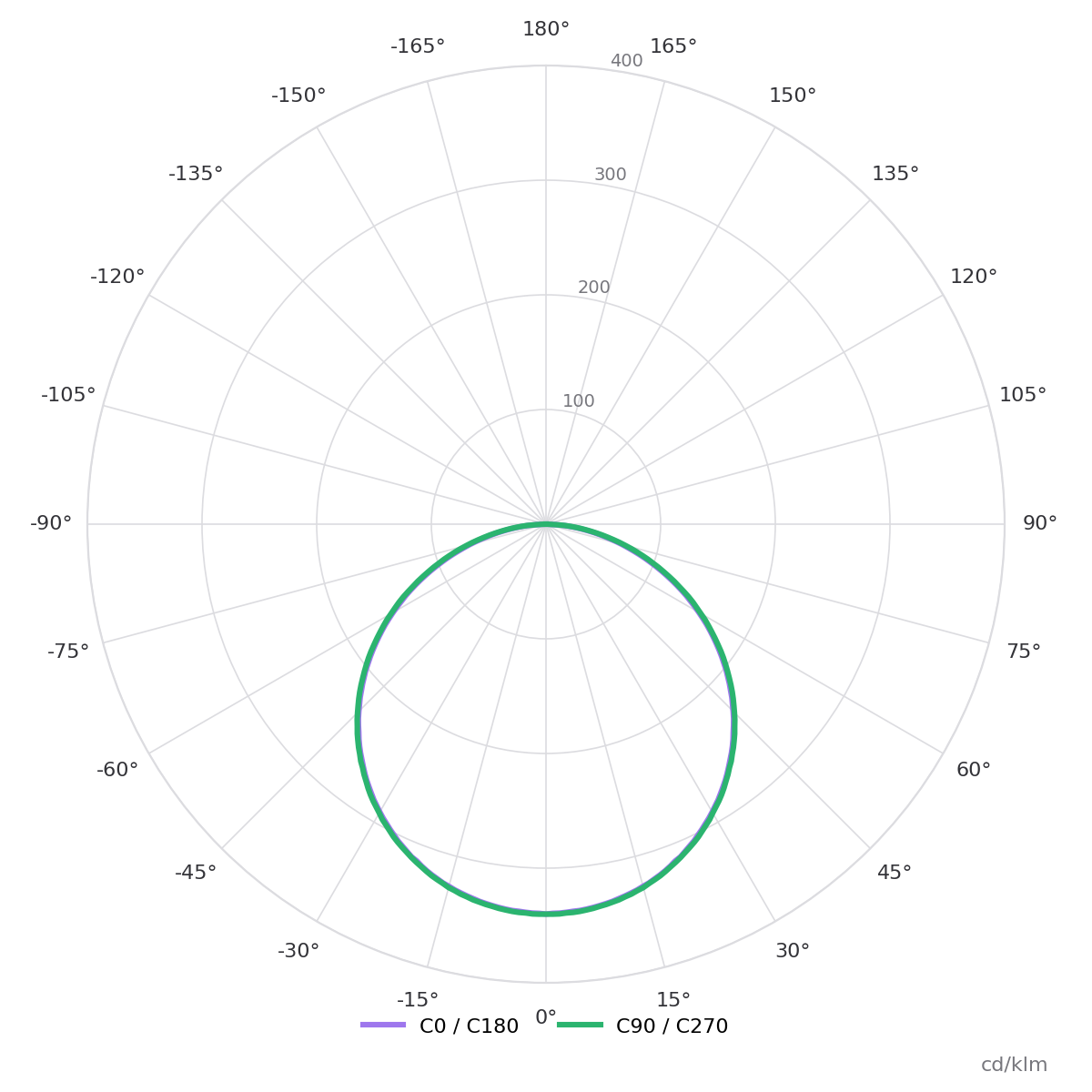

LDT data

LDT data for the PRIUS luminaire

The PRIUS LED panel provides pleasant, even and uniform lighting without multiple shadows. The slim 30 mm panel is available in sizes 60 × 60 and 120 × 30 cm with a power of 30 W.

The PRIUS version has an opal diffuser with soft, even light. The PRIUS GP version has a micro-prismatic diffuser with low glare (UGR ≤ 19), which makes it suitable for spaces with high requirements for glare limitation – schools, kindergartens, offices and receptions.

As standard, the LED panel is installed in a grid ceiling. With additional accessories it can also be mounted in plasterboard, surface-mounted or suspended. DALI dimming and an emergency lighting module are available on request.

PRIUS guarantees a lifetime of 50,000 hours. It comes with an extended 5-year warranty.
