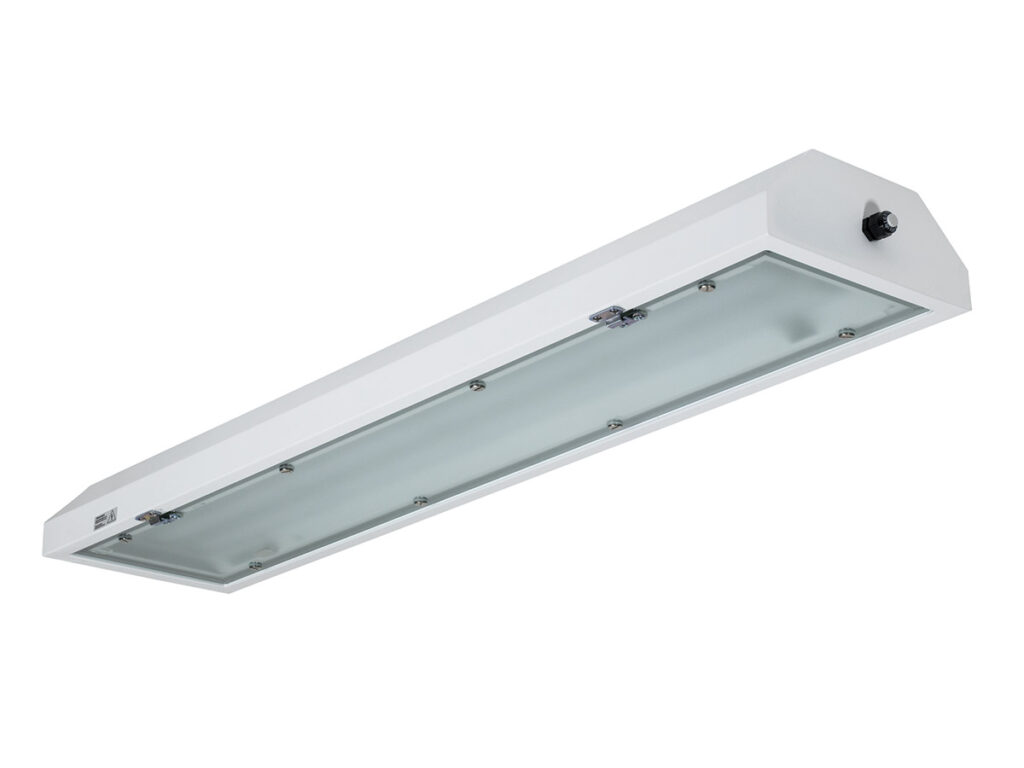

LED luminaire VULCAN for explosive environments

The VULCAN LED explosion-proof luminaire is an Ex luminaire for areas with a risk of gas and dust explosion, suitable for the chemical industry, refineries, paint shops and flammable-material warehouses.

Category: LED lights for explosive environments

Features

Key features	explosion-proof luminaire of group II, category 2 (zones 1, 21 and 2, 22) diffuser made of satined tempered safety glass steel and stainless-steel (AISI 304) body high IP 66 protection and IK 10 resistance through-wiring option
Efficacy	up to 147 lm/W at a colour temperature of 4,000 K and a colour rendering index (Ra) > 80
Maximum luminous flux	from 2,350 lm to 16,800 lm
Service life	75,000 hours L80B50 at an ambient temperature of 55 °C (110,000 hours / L70B50)
Warranty	5 years

Varianty

Model	Dimensions	Power	Luminous flux (NW)*	Weight
VULCAN 730	730 × 350 mm	19 W	2,350 lm	8.3 kg
		27 W	3,350 lm	8.3 kg
		35 W	4,700 lm	8.9 kg
		50 W**	6,725 lm	8.9 kg
VULCAN 1300	1300 × 700 mm	35 W	4,700 lm	14.6 kg
		50 W	6,725 lm	14.6 kg
		67 W	9,400 lm	16.0 kg
		100 W**	13,450 lm	16.0 kg
VULCAN 1580	1580 × 700 mm	40 W	5,875 lm	17.3 kg
		59 W	8,400 lm	17.3 kg
		80 W	11,750 lm	18.9 kg
		121 W**	16,800 lm	18.9 kg

* The luminous flux is stated already including the losses in the luminaire (we do not state the luminous flux of the LED chips themselves). The luminous flux intensity depends on the selected light colour temperature (in kelvins) – the higher the temperature, the higher the luminous flux. [3,000 K = warm white (WW), 4,000 K = neutral white (NW), 5,000 K = daylight white (DW), 6,000 K = cool white (CW)]

** Max. ambient temperature Ta 50 °C; Ta 55 °C for the other variants.

Technical data

Luminaire design

Luminaire body:	white steel sheet (RAL 9003) / stainless steel AISI 304
Diffuser:	satined tempered safety glass
Reflector:	white steel sheet (RAL 9003)
Gasket:	bonded EPDM

ATEX classification

group II, category 2 (zones 1, 21 and 2, 22)

Ex II 2G Ex db eb mb op is IIC T4 Gb
Ex II 2D Ex tb IIIC T68 °C Db

Certification

CE, ATEX

Colour temperature

4,000 K (3,000 / 5,000 / 5,700 K on request)

Colour rendering index

Ra > 80

Colour consistency (SDCM)

3 (MacAdam)

Beam angle

Supply voltage

220–240 V / 50–60 Hz

Glare index (UGR)

21.3 – 25.1

Connection

screwless WAGO, max. cable cross-section 4 mm²

Cable glands

plastic ATEX M20 × 1.5 (metal INOX on request)

Ingress protection

IP 66

Impact resistance

IK 10

Operating temperature

−40 °C … +55 °C

Accessories and mounting

Mounting method

surface-mounting on ceiling or wall
suspension (2 × M6 suspension eyes included)
through-line (row) mounting option – up to 7 conductors inside the luminaire

Luminaire options

Colour temperature:	3,000 / 5,000 / 5,700 K on request
Cable glands:	metal (INOX) on request
Body colour:	on request

Downloads

Catalogue sheets	Catalogue sheet – VULCAN luminaire
LDT data	LDT data for the VULCAN luminaire

Explosion-proof LED luminaire for potentially explosive atmospheres

The VULCAN LED luminaire is an explosion-proof (Ex) luminaire designed for areas with a risk of explosion of flammable gases and dust – zones 1, 21 and 2, 22. Suitable for the chemical and petrochemical industry, refineries, paint shops, mills, wastewater treatment plants and flammable-material warehouses.

The luminaire has a robust steel and stainless-steel construction with a diffuser made of satined tempered safety glass, IP 66 protection and IK 10 mechanical resistance. It operates in the temperature range −40 to +55 °C and, thanks to an efficacy of up to 147 lm/W, significantly reduces operating costs.

It is available in three sizes and a wide power range (2,350 – 16,800 lm), with a standard colour temperature of 4,000 K and a colour rendering index of Ra > 80. It allows through-wiring (up to 7 conductors inside the luminaire) and a screwless WAGO connection.
