LED floodlight RONIN

LED replacement for conventional floodlights, suitable for lighting public spaces, industrial sites, sports fields, advertising surfaces and building façades.

SKU: d2c2122bbb14 Category: LED Floodlights

Features

Key features	elegant slim design energy-saving lighting solution five sizes with power from 18 to 258 W symmetric and asymmetric optics
Efficacy	up to 157 lm/W at a colour temperature of 4,000 K and a colour rendering index (Ra) ≥ 70
Maximum luminous output	from 2,500 lm to 38,000 lm
Lifetime	100,000 hours L90B10 maintaining 90 % of the initial luminous flux
Warranty	5 years

Varianty

Model	Dimensions	Power	Luminous flux (NB)* symmetric optics	Luminous flux (NB)* asymmetric optics	Weight
RONIN S	335 × 250 × 60 mm	18 W	2,700 lm	2,500 lm	3.4 kg
RONIN S	335 × 250 × 60 mm	35 W	5,500 lm	5,000 lm	3.4 kg
RONIN M	383 × 281 × 60 mm	53 W	8,000 lm	7,400 lm	4.4 kg
RONIN M	383 × 281 × 60 mm	80 W	11,000 lm	10,800 lm	4.4 kg
RONIN L	442 × 347 × 64 mm	100 W	15,000 lm	14,700 lm	6.3 kg
RONIN L	442 × 347 × 64 mm	135 W	18,500 lm	18,000 lm	6.3 kg
RONIN XL	532 × 347 × 68 mm	150 W	22,000 lm	21,000 lm	8.5 kg
RONIN XL	532 × 347 × 68 mm	172 W	26,000 lm	25,000 lm	8.5 kg
RONIN XXL	610 × 420 × 80 mm	205 W	31,000 lm	29,500 lm	11.0 kg
RONIN XXL	610 × 420 × 80 mm	258 W	38,000 lm	36,900 lm	11.0 kg

* The luminous flux already includes losses on the luminaire (we do not state the luminous flux of the LED chips themselves). Values apply at a colour temperature of 4,000 K. [3,000 K = warm white (TB), 4,000 K = neutral white (NB), 5,000 K = daylight white (DB), 6,000 K = cool white (SB)]

Technical data

Luminaire design

Luminaire body:	die-cast aluminium, grey (RAL 7024)
Cover:	clear tempered glass
Optics:	PMMA

Colour temperature

4,000 K (others on request)

Colour rendering Index

≥ 70 CRI (Ra)

Beam angles

symmetric 10°

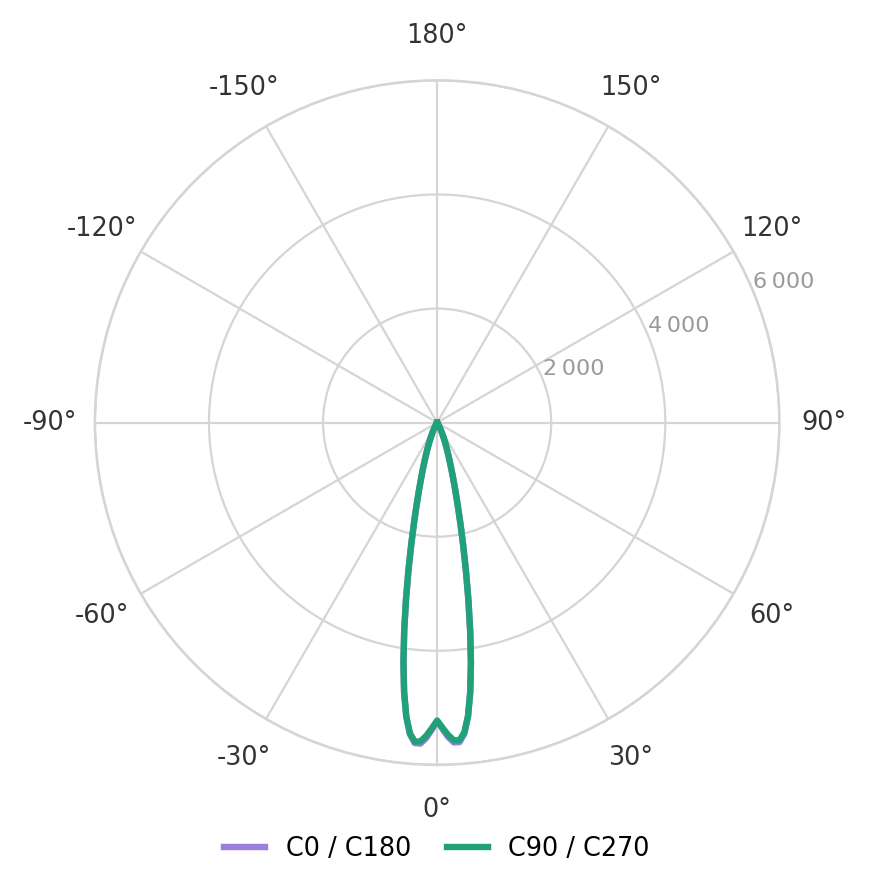

symmetric 20°
symmetric 33°
symmetric 48°

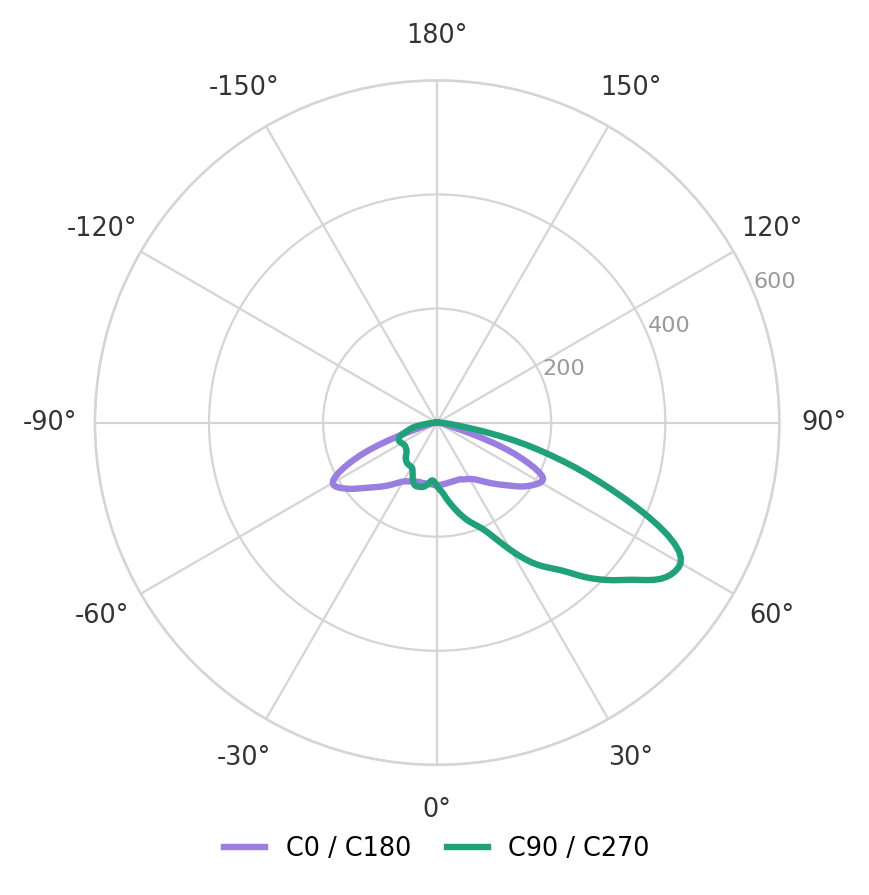

asymmetric

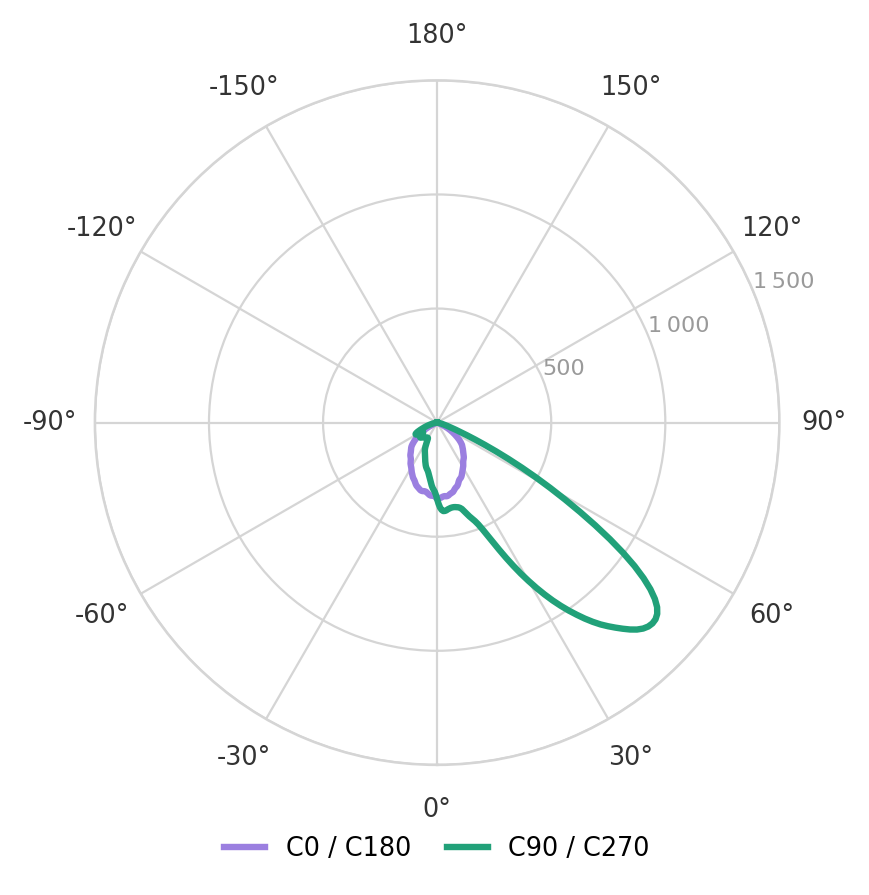

asymmetric wide

10° optics not available for RONIN S and RONIN XL 172 W

Operating temperature

-40 °C ~ 35 °C

Power factor

≥ 0.98

Input voltage

AC: 220 – 240 V/50 – 60 Hz

Surge protection

6 / 10 kV

Protection rating

IP 66

Impact resistance

IK 09

Protection class

Accessories and mounting

Mounting method

with a U-bracket

Luminaire options

Dimming:	on request (DALI, D4i, Casambi)
Autonomous dimming:	on request 5-step
Motion / daylight sensor:	on request
Constant light output (CLO):	on request

Downloads

Catalogue sheets	Catalogue sheet – LED floodlight RONIN
LDT data	LDT data for the RONIN luminaire

RONIN LED floodlights deliver significant savings and a long operating life – their service life is more than 100,000 hours. At a colour temperature of 4,000 K, the floodlights reach an efficacy of up to 157 lm/W.

The luminaires provide consistent colour rendering at any point of the Kelvin scale, emit no UV radiation (so they do not attract insects) and are environmentally friendly. They offer maintenance-free operation with no flickering and no delayed start-up.

Component quality, high durability (the IP 66 protection rating guarantees a perfectly sealed luminaire) and functionality come first with these floodlights. That is why they carry an extended 5-year warranty.
