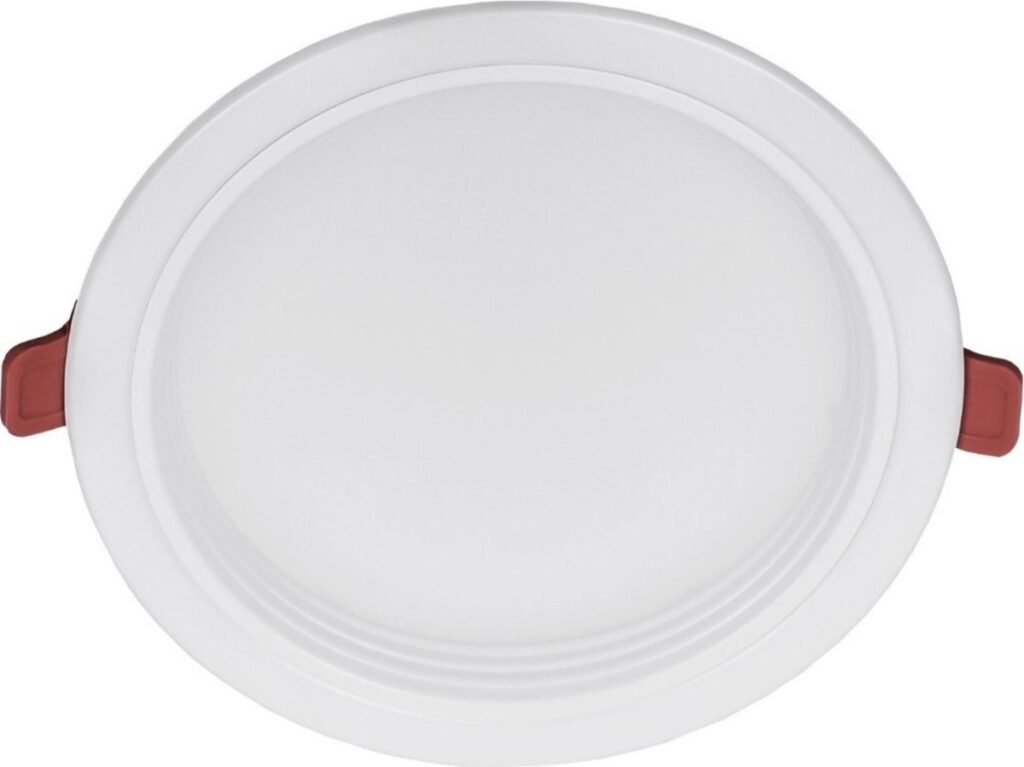

LED Downlight DORIS ECO

The LED Downlight DORIS ECO is a recessed luminaire for suspended ceilings, ideal for offices, schools, corridors, hotels and shops.

SKU: 77cc219a7d26 Category: LED Downlights

Features

Key features	recessed LED luminaire for suspended ceilings two diameters – Ø 200 and Ø 235 mm IP 44 protection – also suitable for bathrooms opal diffuser – uniform light with no visible LED dots
Efficacy	up to 118 lm/W at a colour temperature of 4,000 K and a colour rendering index (Ra) > 80
Maximum luminous output	from 1,000 lm to 2,575 lm
Lifetime	50,000 hours L80B10 while maintaining 80 % of the initial luminous flux
Warranty	5 years

Varianty

Model	Dimensions	Mounting cut-out	Power	Luminous flux (WW)*	Luminous flux (NW)*	Weight
DORIS ECO 200	Ø 200 × 90 mm	Ø 185 mm	9 W	1,000 lm	1,050 lm	0.8 kg
			13 W	1,400 lm	1,475 lm
			19 W	1,950 lm	2,050 lm
DORIS ECO 235	Ø 235 × 90 mm	Ø 220 mm	11 W	1,250 lm	1,300 lm	0.9 kg
			16 W	1,775 lm	1,850 lm
			23 W	2,450 lm	2,575 lm

* The luminous flux is stated including luminaire losses (not the flux of the LED chips themselves). The luminous flux depends on the selected colour temperature (in kelvins) – the higher the temperature, the higher the luminous flux. [3,000 K = warm white (WW), 4,000 K = neutral white (NW), 5,000 K = daylight white (DW), 6,000 K = cool white (CW)]

Technical data

Luminaire design

Luminaire body:	aluminium, white (RAL 9016)
Diffuser:	opal polycarbonate

Colour temperature

3,000 K / 4,000 K

Colour rendering index

Ra > 80

Beam angle

96°

Input voltage

220–240 V / 50–60 Hz

Power factor

> 0.95 (9 W: 0.88; 11 W: 0.90)

Protection rating

IP 44

Impact resistance

IK 04

Protection class

Operating temperature

0 … +35 °C

Accessories and mounting

Mounting method

recessed mounting in suspended ceilings
round cut-out Ø 185 mm (DORIS ECO 200) / Ø 220 mm (DORIS ECO 235)
mounting brackets included

Luminaire options

Dimming:	on request (DALI, switch dimming)
Emergency lighting module:	on request (3 h, with self-test or DALI interface)
RAL colour:	on request

Downloads

Catalogue sheets	Catalogue sheet – DORIS ECO luminaire
LDT data	LDT data for the DORIS ECO luminaire

An affordable alternative to DORIS luminaires

The LED Downlight DORIS ECO is a recessed luminaire for suspended ceilings, suitable for offices, schools, corridors, hotels, shops and sanitary facilities.

The luminaire body is made of aluminium, which ensures good heat dissipation. DORIS ECO is available in two diameters – Ø 200 and Ø 235 mm. The opal diffuser provides uniform light with no visible LED dots. Luminous flux from 1,000 to 2,575 lm, colour temperature 3,000 K or 4,000 K and colour rendering index Ra > 80.

With an efficacy of up to 118 lm/W and a lifetime of 50,000 hours, it saves both operating and maintenance costs. The IP 44 rating also allows use in bathrooms. DALI dimming, an emergency lighting module and a RAL colour are available on request.
